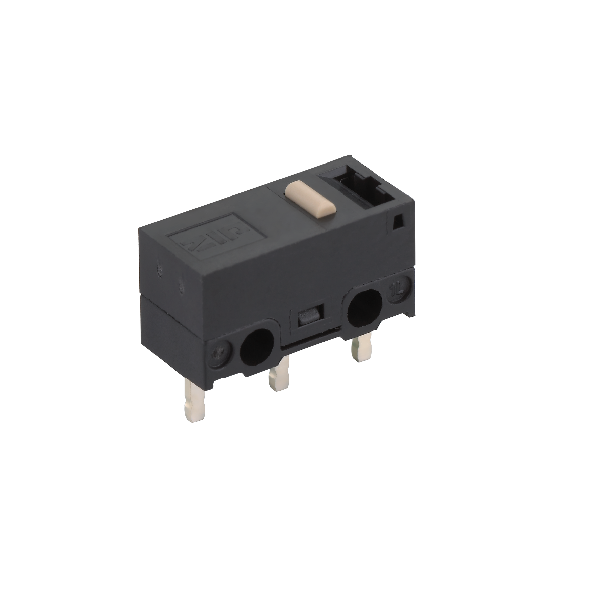

DF-M Series

DF-M Series

SPECIFICATIONS
Operating frequency(mechanical):
   120 Operation / mim
Operating frequency(electrical):
   10~30 Operation / mim
Contact resistance:
   100m Ω(max)
Insulation resistance(at 500 VDC)
   100M Ω(Min)
Service life(mechanical)
   Min. 1,000,000 Operations
Service life(electrical)
   1A/3A-Min.10,000 Operations

RATING
0.1A/1A/3A 125VAC; 3A 5VDC/12VDC

APPLICATION
‧ Computer mouse
‧ Joysticks
‧ Charger unit for mobile phone
‧ Detection of key position for automobiles
‧ Small home appliances
‧ Central heating control
‧ Electronic Door Locks
‧ Smart Meter



SIZE:12.7 W x5.8D x 6.6H(mm)



Certified Seller for zippy micro switches.

Distributor for zippy micro switch in Banglore, Odisa, Assam.

df-m-series

SWITCH

Brand:
Zippy
Sub Category:
Zippy Micro Switches
Part Number:
DF-M Series
Nominal rating:
0.1A/1A/3A 125VAC; 3A 5VDC/12VDC
Mechinical Endurance:
120 Operation / mim
Contact Resistance:
100m Ω(max)
Electrical Endurance:
10~30 Operation / mim
Application:
‧ Computer mouse ‧ Joysticks ‧ Charger unit for mobile phone ‧ Detection of key position for automobiles ‧ Small home appliances ‧ Central heating control ‧ Electronic Door Locks ‧ Smart Meter
Permissible Soldering Temperature:
Insulation resistance(at 500 VDC) 100M Ω(Min)
Brand / Make:
ZIPPY
